Applieds To: ViewBoard
IMPORTANT: - Remote control for ViewBoard is required. - For IFP50-5/5F series displays, myViewboard Manager enrolled devices can be unlocked via Manager. - If the remote control or Manager is not an option, the ViewBoard will need to be reflashed. Please submit a New Support Ticket for assistance.
Instructions:
To set a screen lock password:

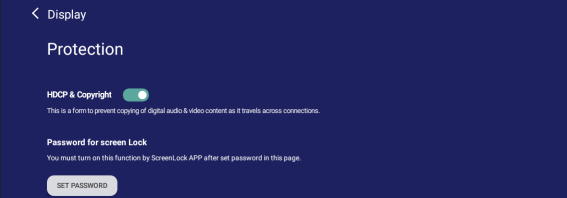

- Go to: Settings > Display > Password for screen lock or select the Screen Lock icon in the apps list.
- Select Set Password and input a new four (4) digit password. Then select OK.
- Now when selecting the Screen Lock icon, the screen will be locked.
Screen Lock Variations and Bypass Methods

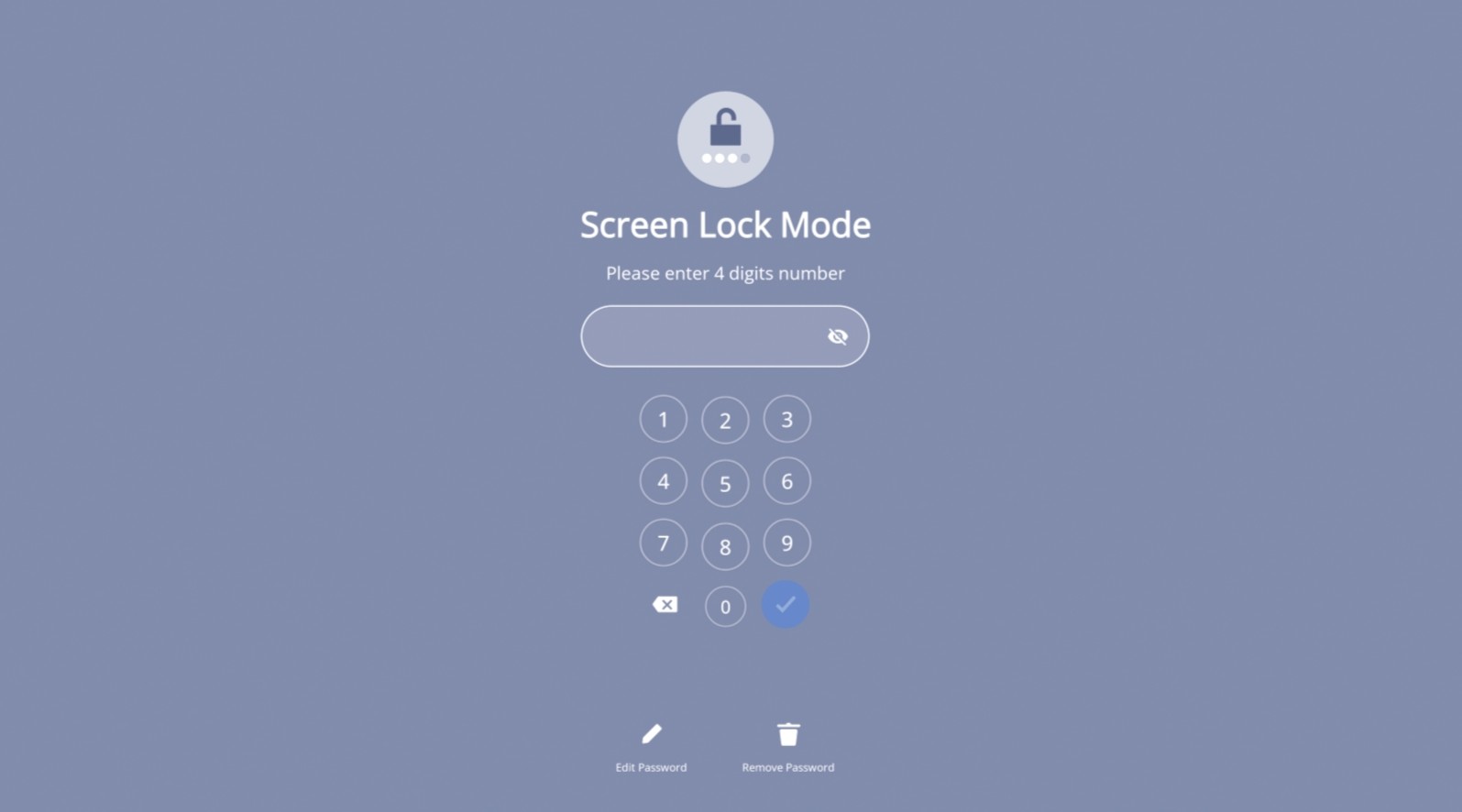

Screen Lock Version 1

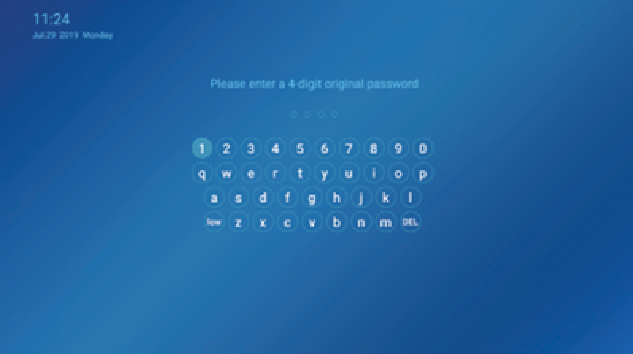

Screen Lock Version 2Bypass: Enter ViewBoard, ensure to capatilze V and B.

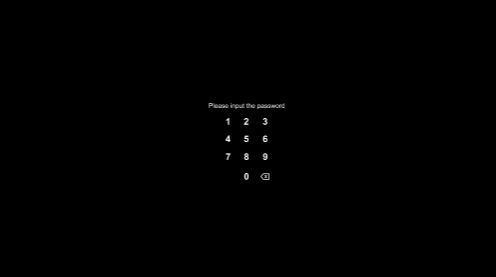

Screen Lock Version 3

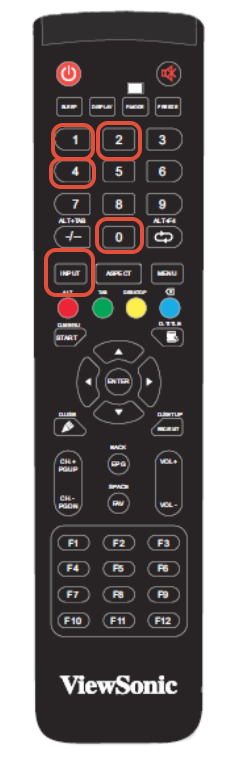

Bypass: Use the remote control and enter 2-3-5-1-9-2
For additional questions, please contact ViewSonic's Support by submitting a support ticket HERE or by Phone: US: 800-688-6688, CAN: 866-463-4775. ViewSonic’s call center hours: M-F, 6 AM - 6 PM PST.
