Product Description
PJ-WPD-700 wireless casting solution that empowers users to seamlessly cast content from their mobile devices with no network setup, software installation or app downloads required.

For further information, please visit our product page:
https://www.viewsonic.com/us/pj-wpd-700.html



Pairing Instructions

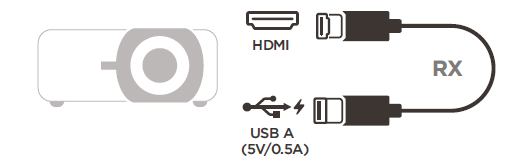

  1. Connect the HDMI and USB receiver to the back of any screen monitor display or projector.

    1. When the USB is connected to the back of the display/projector it will provide the 5V / 0.5A required for the receiver to work and supply the video transmitted through the HDMI port.
    2. Make sure the display/projector is on and select the HDMI port input.

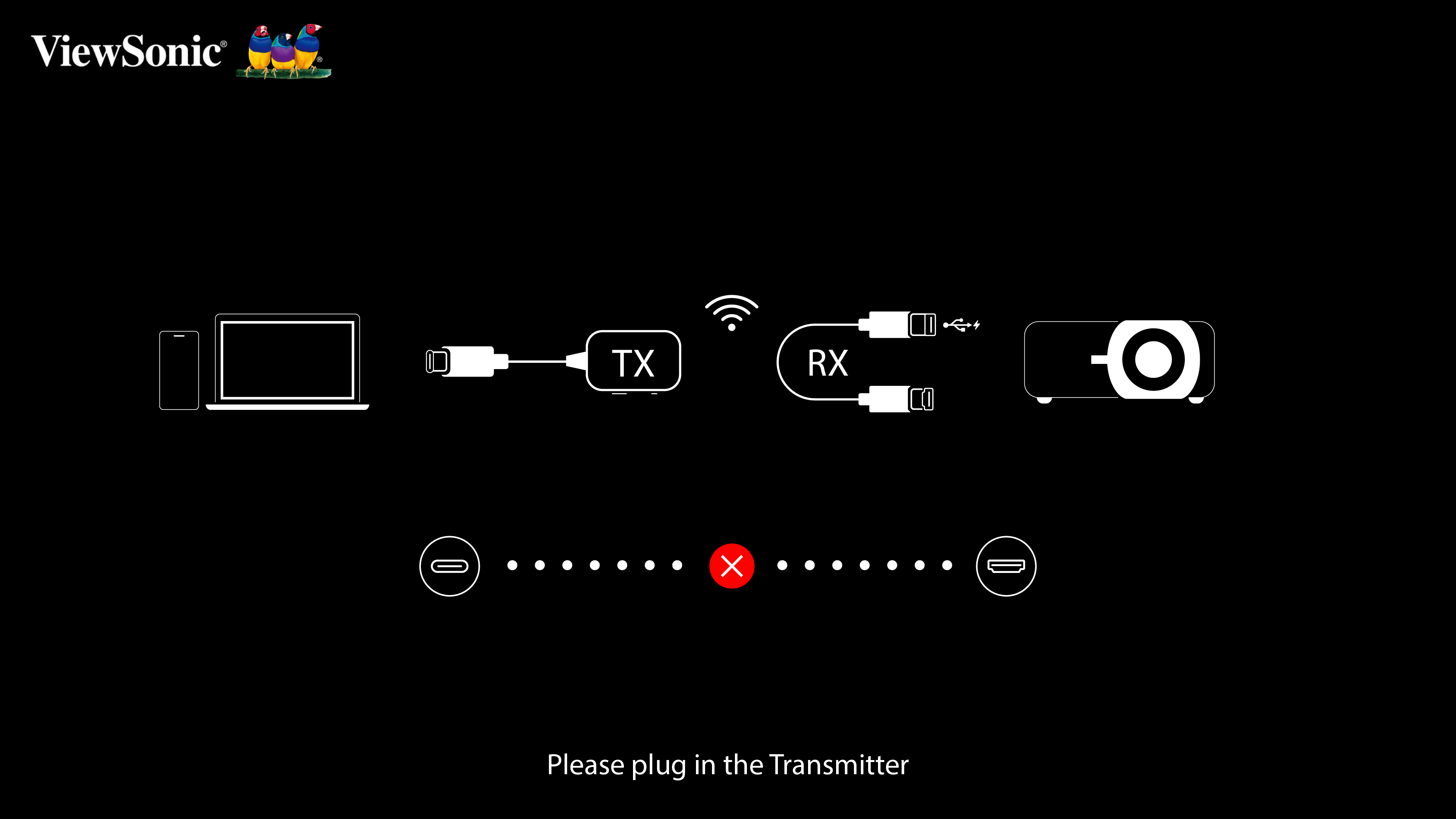

    3. A video image like the one below from the receiver will be displayed awaiting the video source to transmit video that will be provided from the transmitter.

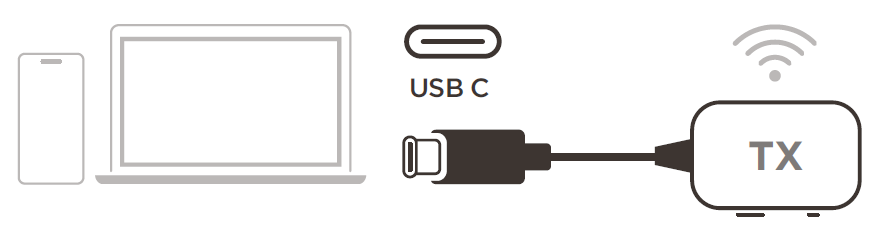

  2. Connect the transmitter using the USB-C port to any supported device to transmit the video content to the receiver.

    1. Make sure your device (Laptop / Iphones15 / Android phone) is on so that the video content can be transmitted to the receiver connected to the display.
    2. Once the transmitter is connected, it will receive the 5V / 1A required for the transmitter to power on and transmit the video content to the receiver.
    3. Once the transmitter is connected and powered on, it will transmit the video content to the receiver.

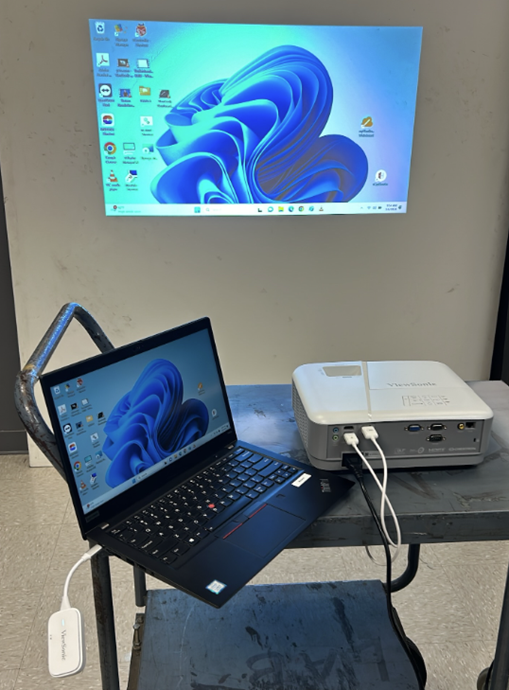

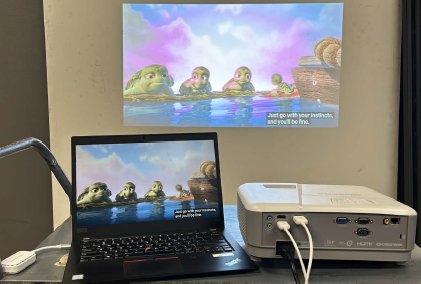

(Transmitter transmitting the image to the receiver on the projector screen.)



Reset or pairing the Receiver

Pairing the receiver to the Transmitter or up to 8 transmitters to one receiver.

  1. If the transmitter does not transmit the video content to the receiver, you can hold the reset button for 5 seconds and if that does not fix the problem, it must be paired.
  2. Here is how you pair if the receiver is not receiving the transmitting the video.
    1. If the receiver is connected to a display or projector and the transmitter is connected to any device source such as a laptop.

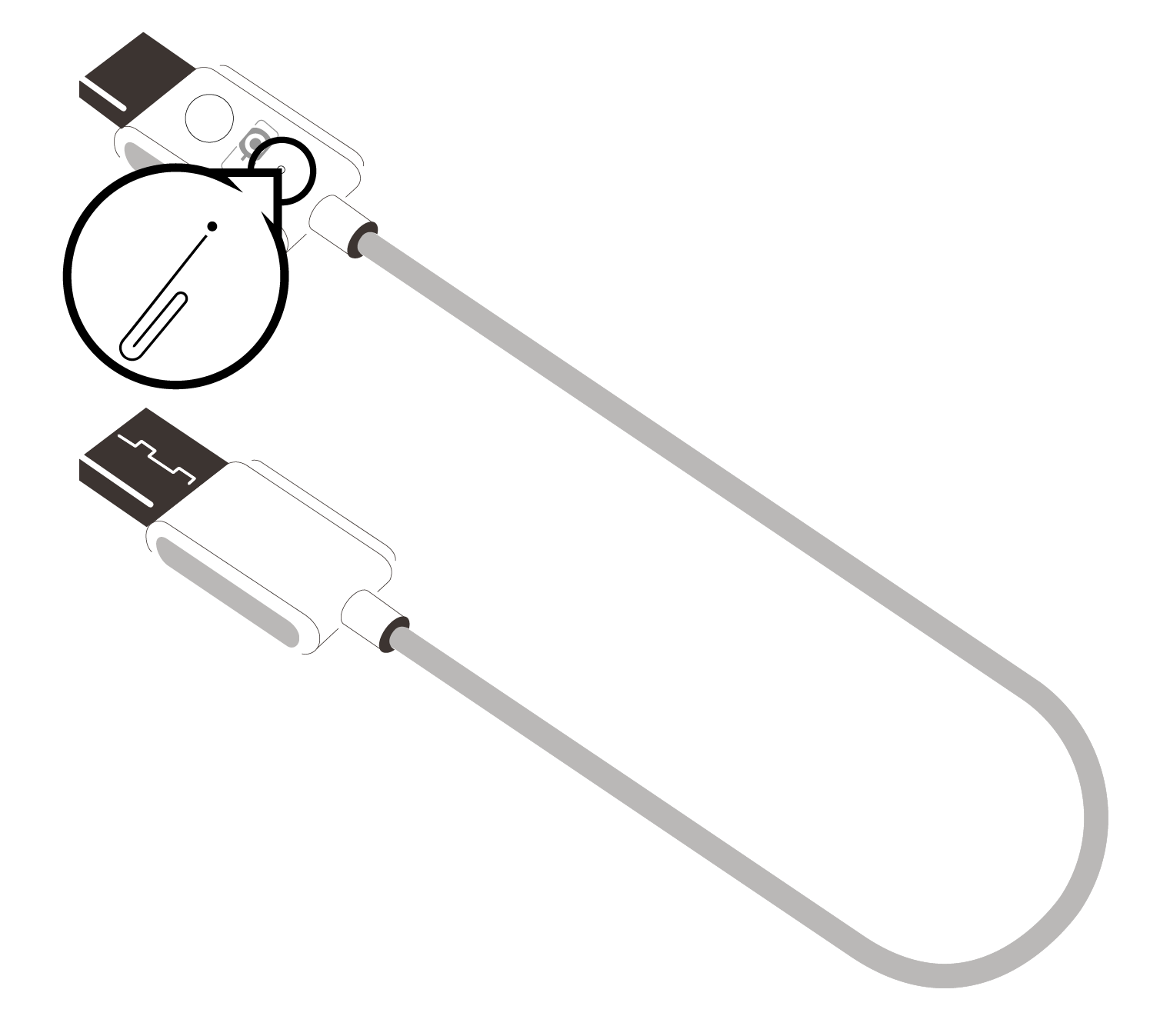

    2. Use the tip of a paper clip on the back of the tiny hole of the HDMI cable push in and feel a click, hold for about 5 seconds and you will be prompted to release at this point.



  3. You are now ready to pair to the transmitter.

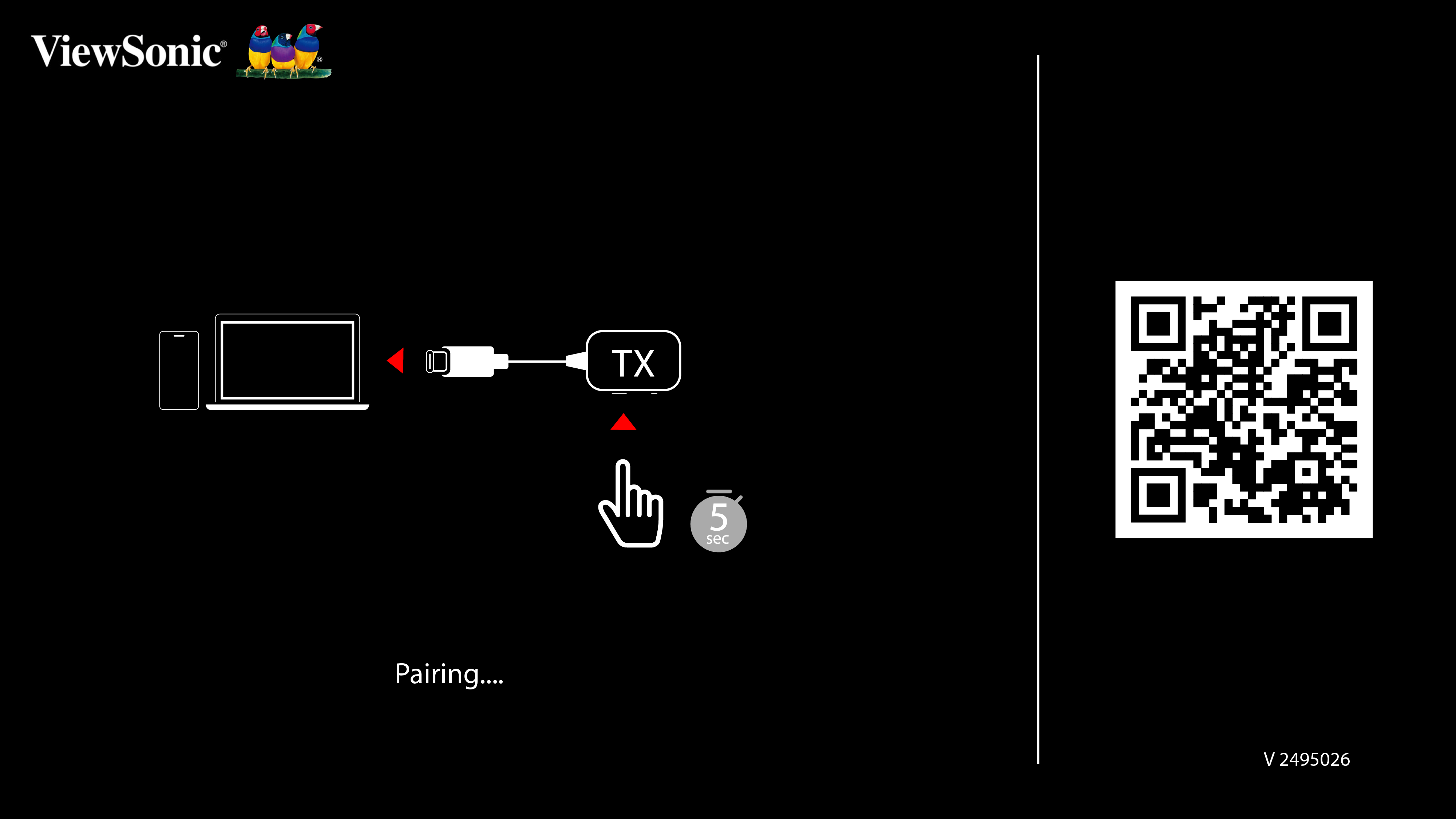

  4. Press and hold the (stop/play) pair button for 5 seconds and let go.

  5. Transmitter will start to pair and will transmit the video on its own once completed.


  6. Pairing is completed.

  7. The same rule will apply to pair up to 8 transmitters on one receiver by repeating the pair process.
    1. Once paired, the transmitters must take turns to transmit their video content to the receiver. Press the stop button on the transmitter to stop transmitting the video and press the play button on the next transmitter to transmit the video.
    2. The same rule will apply to pair any transmitter back to the intended receiver.
