Applies to:
IFP105S

Hardware Required:

USB Flash Drive (FAT32 formatted)  How to format a USB Drive to FAT32



IMPORTANT NOTES
- Firmware pack updates are incremental, applying necessary fixes without wiping the display or resetting any
  settings.
- Certain models may have multiple firmware packs based on the panel code.
- Firmware pack update process may take approximately 9 minutes to complete.
- DO NOT unzip/extract the contents of the firmware pack. Copy as a .zip file
- DO NOT remove the USB drive after the display boots up until the initial setup wizard
  has been completed.
- DO NOT power off device during update as it may result in a non-functioning unit.



Instructions:

  1. Copy the IFP105S_Firmware_Pack file to the root directory of the USB flash drive.

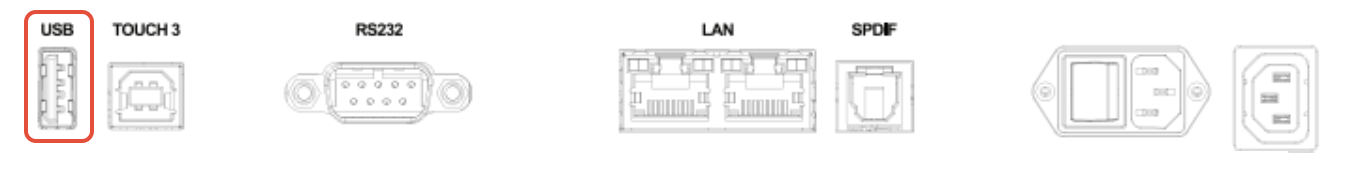

  2. Insert the USB flash drive into the USB2.0 port located bottom right side of the display.

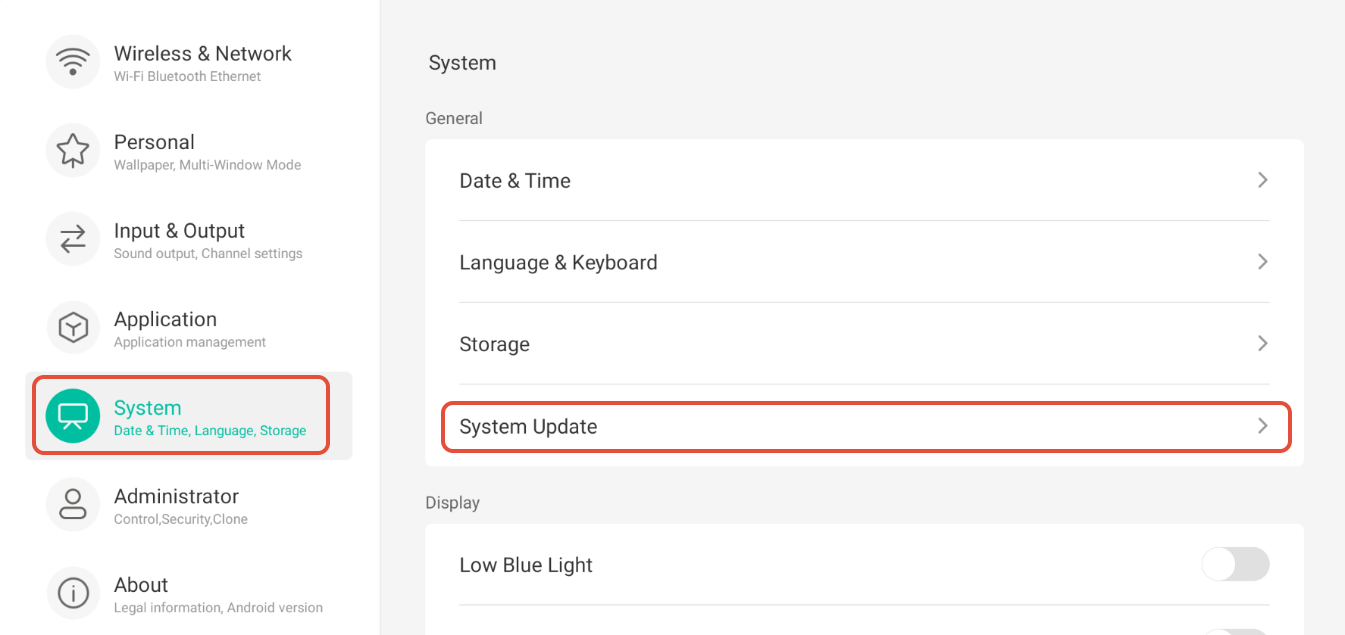

  3. Go to Settings > System > System Update.
  4. Under System Update, click Browse.

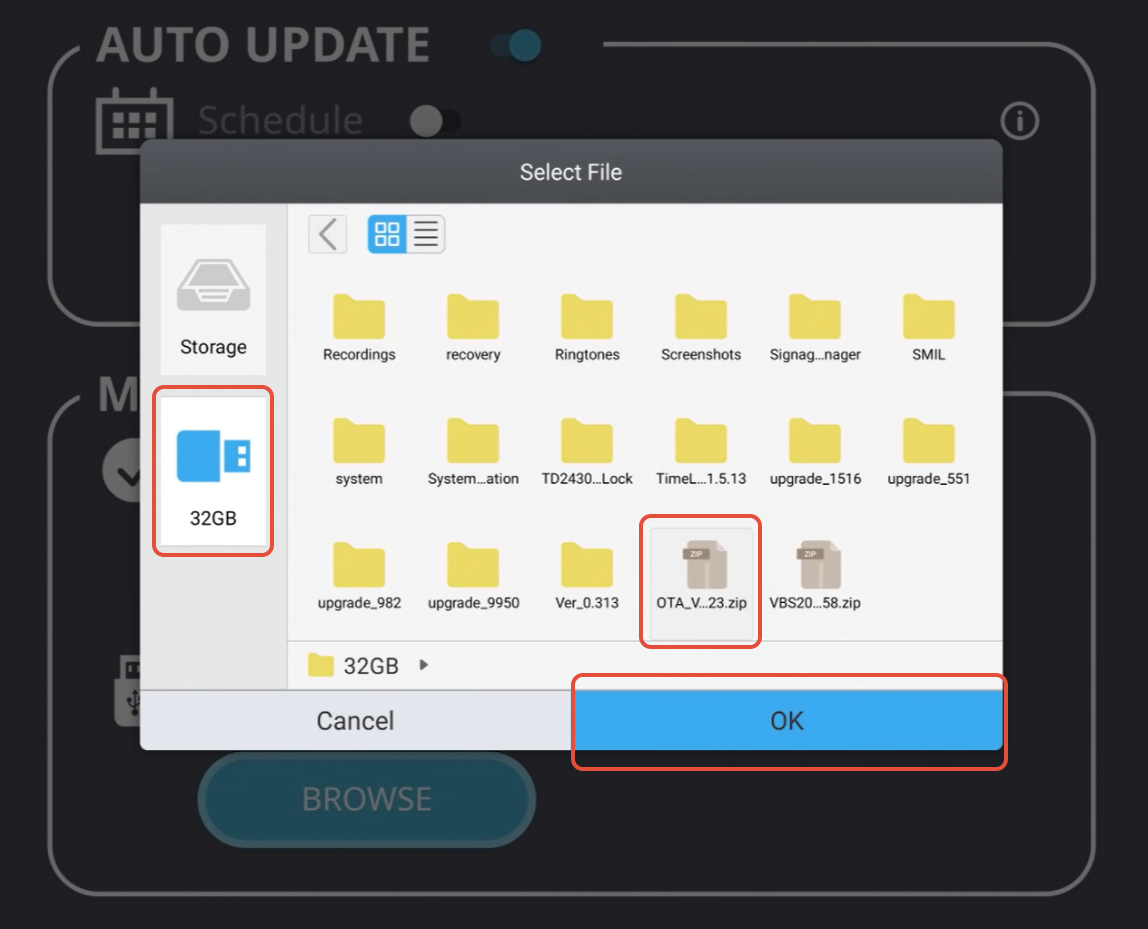

  5. Select the USB flash drive and then select the firmware file, after selecting the firmware file, select OK.

  6. Wait for the upgrade to complete and display to reboot.
  7. Once the unit reboots and returns to the ViewSonic Home screen, verify the unit's firmware version in the About Device. Go to Settings > System > About




For additional questions, please contact ViewSonic's Support by submitting a support ticket HERE or by Phone: US: 800-688-6688, CAN: 866-463-4775. ViewSonic’s call center hours: M-F, 6 AM - 6 PM PST
