How to disable U-Disk lock on an IFP

Applies to:

• IFP Displays



Issue:
The display is reporting the following error on the screen: "The device has been locked, please use the U disk to unlock".


Instructions:

1. Obtain a FAT32 formatted USB drive.
   • How to format a USB Drive to FAT32
2. Download the attached Unlock.zip
3. Open and extract the Unlock file
4. Load file to a USB flash drive

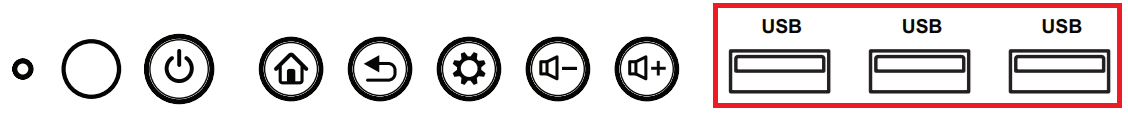

5. Connect the USB flash drive to the display's front USB ports

6. System will unlock automatically




To Disable the U-Disk Lock:

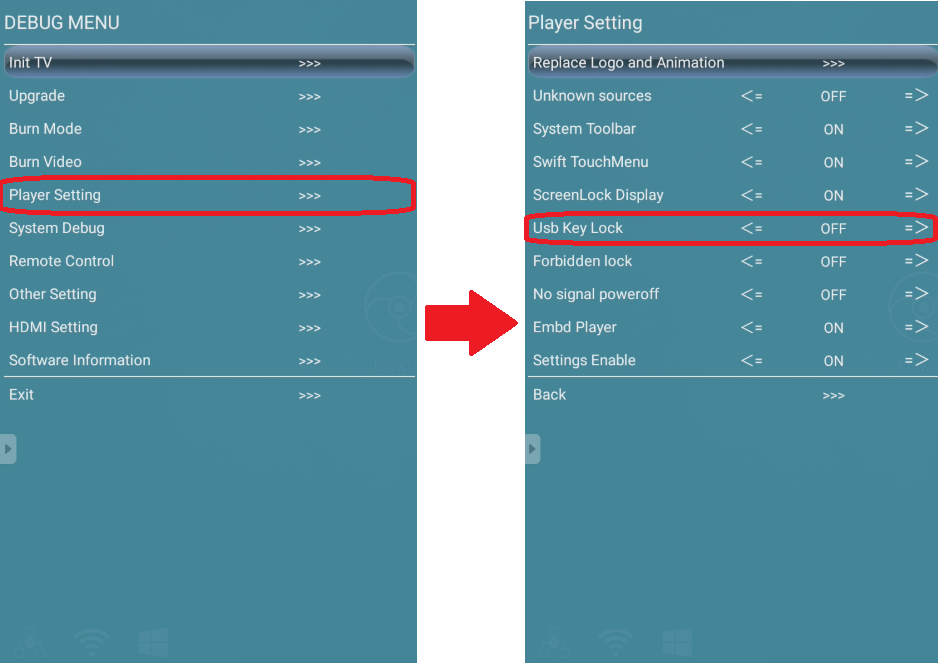

• OLD UI:
  1. Using the remote control, press INPUT-9-9-1
  2. Select Player Settings
  3. Set USB Key Lock to OFF

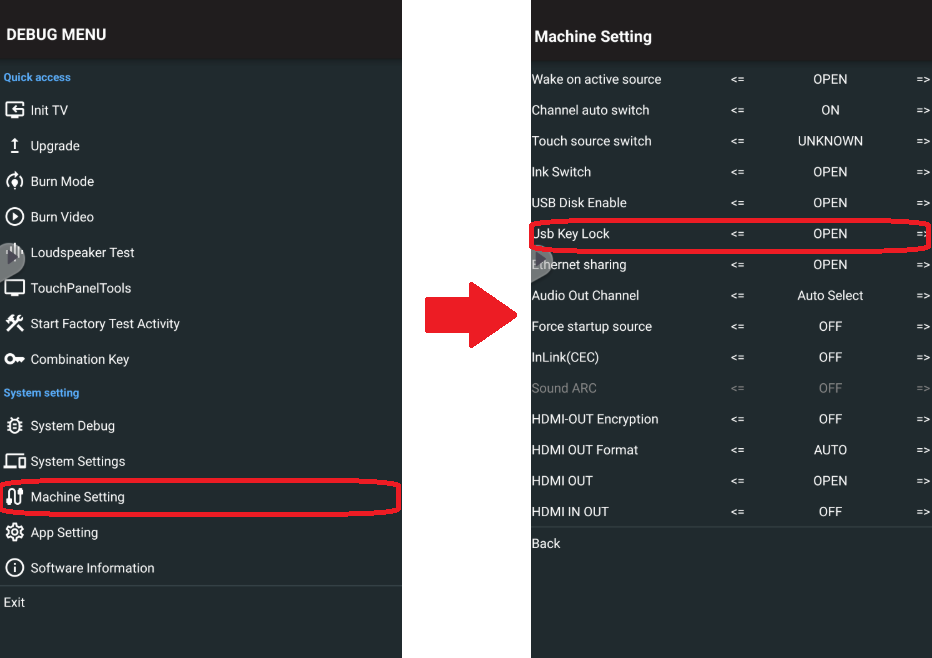

• NEW UI
  1. Using the remote control, press INPUT-9-9-1
  2. Select Machine Settings
  3. Set USB Key Lock to OFF
