ViewSonic’s (VPC) PC modules are equipped with two distinct types of connectors: the proprietary ViewSonic connector and the Open Pluggable Specification (OPS) connector. Initially, older PC module models utilized the proprietary 120-pin connector. However, this was subsequently replaced by the more standardized 80-pin OPS connector, aligning with industry standards for enhanced compatibility and ease of integration.
Identifying The Connector:

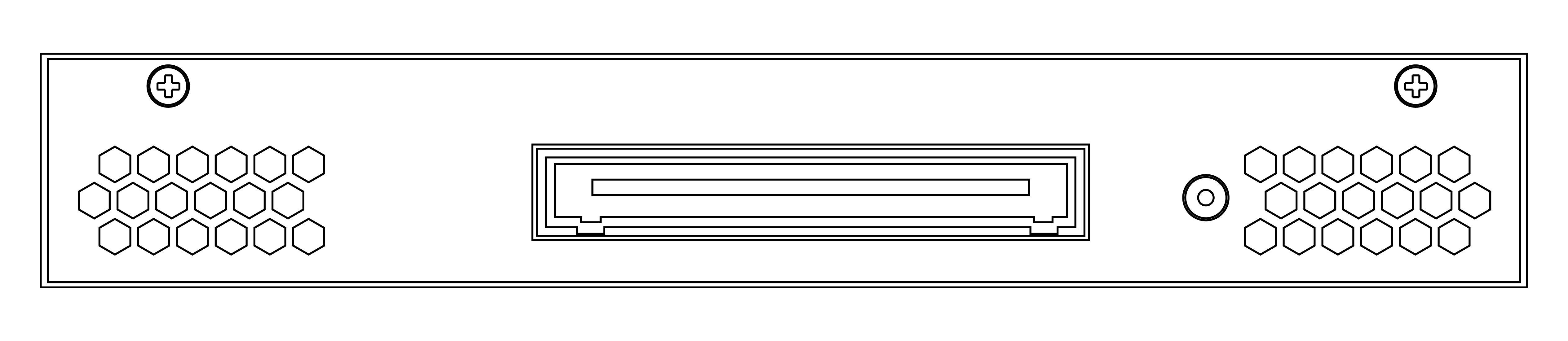

- ViewSonic's Proprietary Connector
| Models | |
| VPC14-WP-2 | VPC17-WP-6 |
| VPC14-WP-5 | VPC25-W33-P1 |
| VPC15-WP-4 | VPC25-W53-P1 |
| VPC15-WP-6 | VPC25-W53-P2 |
| VPC16-WP-4 | VPC27-W55-P2 |

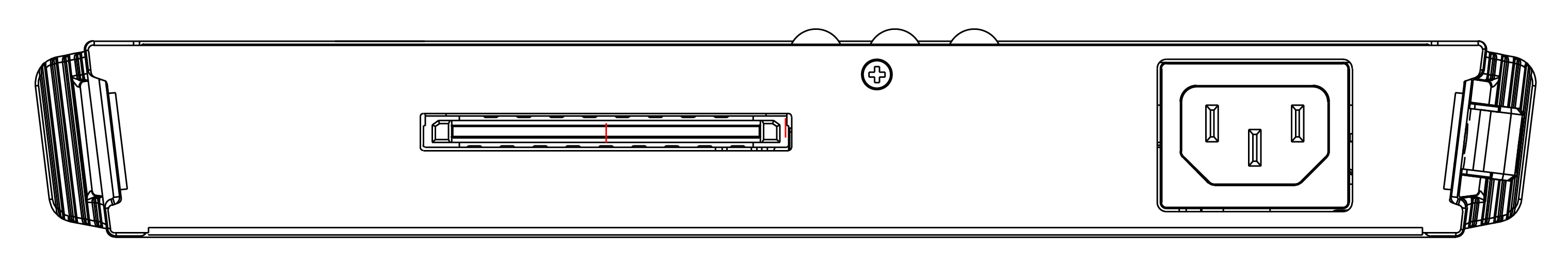

- Open Pluggable Specification (OPS)
Models | |
| VPC25-W33-O1 | VPC2C-W33-O1-1B |
| VPC25-W33-O1-1B | VPC35-W55-G1 |
| VPC25-W53-O1 | VPC37-W55-G1 |
| VPC25-W53-O1-1B | VPCF5-W55-G1 |
| VPC2C-W33-O1 | VPC-A31-O1 |
